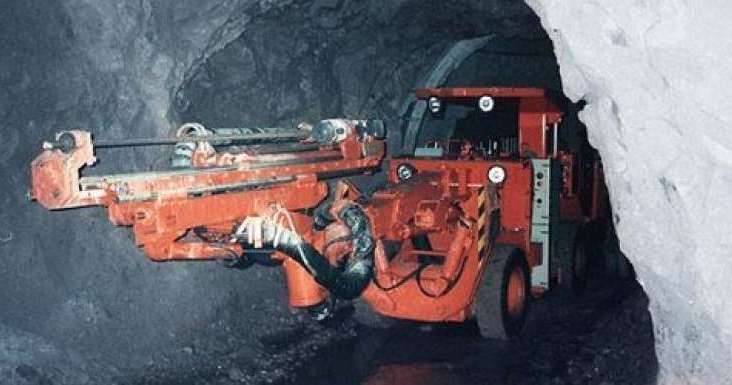

DD210 DEVELOPMENT DRILL RIG
Sandvik DD210 is a single-boom, electro-hydraulic mining development drill rig engineered for use in tunneling and mining development in cross sections up to 24 square meters. This mining jumbo, with a robust universal boom that offers optimum-shaped coverage, 360-degree rotation and automatic parallelism, provides fast, easy feed positioning and accurate face drilling.
| Technical data | |
|---|---|
| Cornering | 5100 mm Inner 3400 mm, Outer 5100 mm |
| Engine power | 53 kW |
| Feed length | 5270 mm TF500-12 ft |
| Hole diameter | 76 - 127 mm Hole size (Cut hole) |
| Tramming dimensions | 9,590 x 2,670 x 2,750 mm |
| Weight | 9,100 kg Depending on options |
| Boom/Mast type | B14F |
| Carrier type | Wheel-mounted, frame-steering |
| Control system | IBCQF |
| Engine type | Deutz L04D914, Diesel |
| Feed module | TF500-12 ft |
- Compact layout for good visibility and stability
- Articulated heavy-duty carrier for stable and safe maneuvering
- Powerful hydraulic rock drill and smooth controls for high drilling performance
- Operating environment and automatic functions for safe, fast and accurate drilling
- Protected service points are easy to access for quick maintenance
